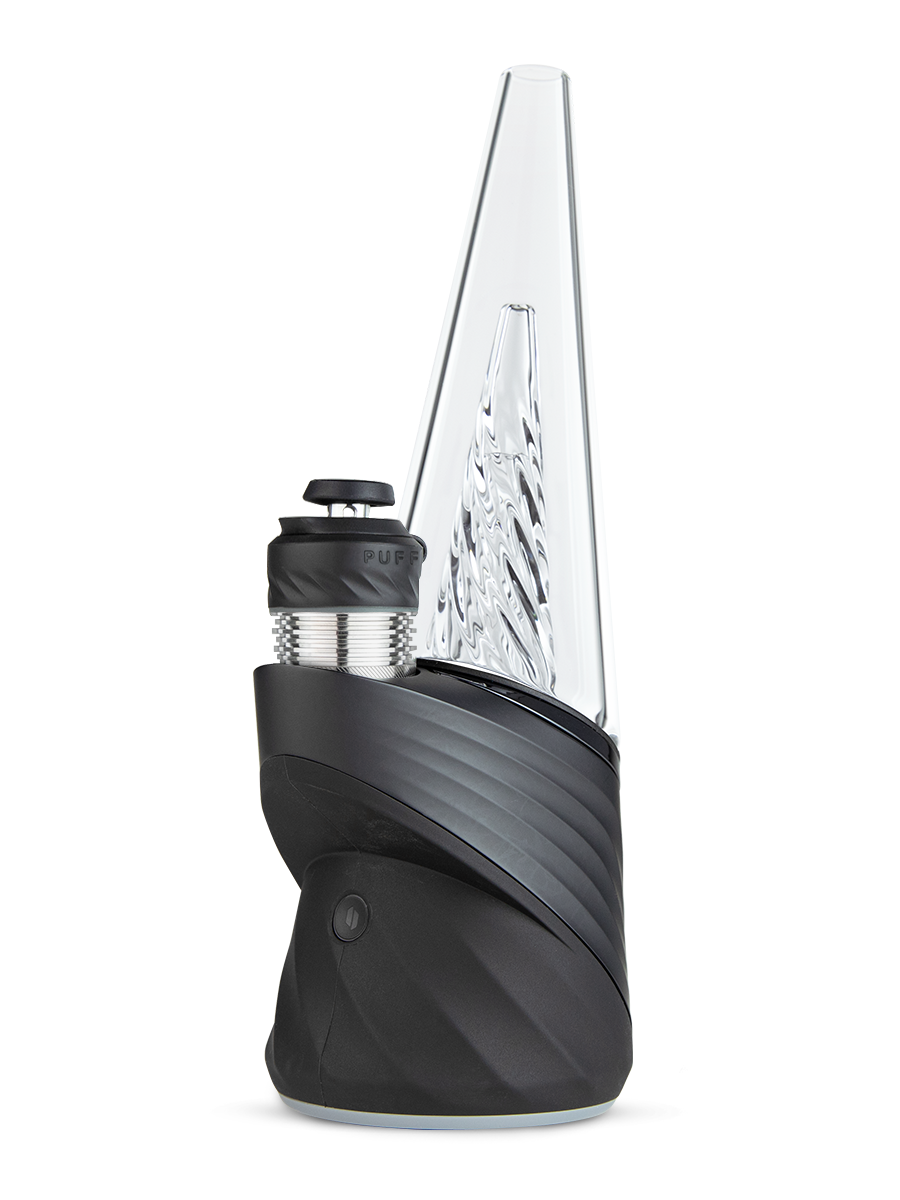

The Puffco Peak Pro 3DXL is a rechargeable, water-filtered concentrate rig with a 3DXL Chamber, an XL Joystick Cap and optional customization through Puffco Connect. It combines on-device operation with app settings for people who want to adjust more than a fixed heat preset.
There are two identities to keep straight: the Peak Pro is the powered platform, while 3DXL names the chamber fitted to it. A complete Peak Pro 3DXL kit and a standalone 3DXL replacement chamber are different purchases and different pieces of equipment. This guide explains that relationship, the controls and the maintenance details that are easy to miss in a list of features.
What the 3DXL name means
The 3DXL is a deeper chamber within the Peak Pro family. Its matching XL Joystick Cap is part of that arrangement, and the chamber enables the app's additional XL Vapor Control setting. That does not make it a universal upgrade for any device with “Peak” in the name.
Puffco lists the 3DXL Chamber as compatible with all Peak Pro models and requires updated firmware. It separately says the XL Joystick Cap is only compatible with the 3DXL Chamber. Check both the base and the cap when replacing an assembly, rather than matching only the outer color. Manufacturer 3DXL compatibility and firmware notes.
Features worth understanding before comparing rigs
| Feature | What to consider |
|---|---|
| 3DXL Chamber | A specific Pro-family heating chamber; replacement cost and cleaning belong in the comparison. |
| Customizable heat profiles | Useful if you want separate settings for different session preferences. |
| Puffco Connect | Additional controls through a compatible phone/browser setup, with pairing and permissions to manage. |
| USB-C and Qi charging | Different charging methods; optional charging accessories are separate from the rig itself. |
| Removable glass top | Water filling and glass cleaning happen separately from the electronic base. |
The manufacturer lists an approximately 20-second heat-up and around two hours for charging. Treat those as reference figures, not a promise that every temperature, battery condition and extended session behaves identically. Current Peak Pro 3DXL model information.
Standard heat profiles and customized profiles
| Color | Default temperature |
|---|---|
| Blue | 490°F |
| Green | 510°F |
| Red | 530°F |
| White | 575°F |
Those are defaults, not immutable meanings of the lights after customization. If another person has changed the profiles, check the saved values before following a color-based suggestion. Also avoid transferring a chart from the newer non-Pro Peak, whose highest default is different. Peak Pro 3DXL manual, Heat Settings.
Temperature, time and Vapor Control are separate choices
A useful way to learn the app is to change one setting at a time. Temperature is one value; how long the profile runs is another. Vapor Control is an additional app adjustment, with XL available when a 3DXL Chamber is connected. Two profiles sharing a temperature do not necessarily share every other setting.
Boost changes the active session, and the app can customize its time and temperature adjustments. Ready Mode is another separate feature: it requires the Peak Pro Power Dock and the app, and can initiate a selected profile when the rig is lifted from the dock. A wireless charger and a Ready Mode setup should not be treated as interchangeable terms. Official app, Boost and Ready Mode explanations.
If you are comparing saved profiles, write down the settings rather than relying on a name such as “low” or “flavor.” A descriptive name helps you remember your own configuration, but is not a universal specification.
Preparing the rig and glass
Remove the glass before filling it. Follow the actual top's diagram, keeping water just above the percolator slots and out of the lower section. Reattach the glass with the inlet aligned to the chamber side of the base. Keep the rig upright, and do not blow into the mouthpiece to clear the glass.
Charge the base, load the intended concentrate into the chamber before heating and seat the cap securely. The single-button interface still allows selection and session start without making every session an app interaction. Wait for the ready signal rather than guessing from elapsed time, then use a gentle draw with the XL Joystick. Kit and use overview.
Connecting Puffco Connect
Use Puffco's current instructions for your phone. Its support page directs iPhone users through Path Browser and the Puffco web app; Android instructions differ. Hold the device button for six seconds to enter pairing mode and look for the blue pairing indication.
When pairing fails, checking the phone's general Bluetooth switch is only the first step. The app or browser also needs the applicable permissions. Manufacturer troubleshooting specifically points to app Bluetooth and location permissions. Follow its current phone-specific instructions rather than assuming a guide written for another operating system will match your screen. Manufacturer pairing troubleshooting.
A temporary disconnected status on reopening the app does not by itself prove the chamber or base is defective. Allow reconnection time and follow the supported steps before replacing hardware. Reconnection guidance.
Peak Pro chamber and accessory compatibility
| Item | Compatibility point |
|---|---|
| 3DXL Chamber | The manufacturer identifies all Peak Pro models as compatible, with updated firmware required. |
| XL Joystick Cap | Specifically listed for the 3DXL Chamber. |
| Newer non-Pro Peak | A separate model with its own Peak 3D Chamber. Do not transfer the Pro compatibility claim to it. |
| Peak Pro Link | An accessory setup, not another name for the complete rig. Check what its package includes and which chamber it lists. |
The official Link + 3DXL set says the Peak Pro is not included and lists compatibility with Peak Pro 3D and 3DXL chambers. That is a useful example of why the product title and included-parts list both matter. Link set and included components · Separate non-Pro chamber identity.
Cleaning the 3DXL Chamber and base
After a session, gently dry-swab the bowl while it is warm. For a deep clean, let the chamber cool completely, remove the cap and unscrew the chamber. Puffco instructs a 20-minute soak in 90% or stronger isopropyl alcohol, followed by complete air drying. Do not rinse the electronic chamber with water.
Remove the glass and chamber before cleaning the base contacts and airpath with an alcohol-dampened cotton swab. The base must not be flooded, soaked or water-rinsed. Clean detached glass separately, then rinse and dry it thoroughly before reassembly. “Rinse the glass” and “do not rinse the chamber” are different instructions for different parts. Peak Pro component-specific cleaning.
Do not solve stubborn residue with force on ceramic or contact pins. If a component cannot be removed normally, use the manufacturer's support route before damaging the connector. Full drying is part of cleaning, not an optional pause before the next session.
Battery life: compare the conditions, not just the number
The current general product page and support information describe roughly 30 heating cycles, with actual use depending on settings. Temperature, time and repeated extensions change battery use. Do not read a cycle count as a guaranteed number of arbitrarily long sessions.
For a meaningful comparison, note the profile you use and whether you extend it. A personalized profile running longer than the default is a different workload. If charging or runtime changes substantially, report the actual settings and symptom to support rather than using a marketing count as a diagnosis.
Troubleshooting without guessing at a replacement
| Issue | Useful first check |
|---|---|
| Chamber not detected or connection error | Cool the device, confirm the correct chamber, clean contacts and fully dry before reseating. |
| No app connection | Check pairing mode, supported phone/browser setup and permissions before blaming the chamber. |
| Overheating indication | Let the device cool instead of repeatedly restarting heat. |
| Unexpected profile behavior | Read the saved temperature, duration, Vapor Control and Boost settings. |
The manual distinguishes no-chamber, chamber-error, overheating and low-battery signals. Keep a note of the actual pattern if support is needed. A video of the signal is more useful than describing every issue as “it flashes.”
Peak Pro 3DXL, Peak or New Proxy?
Choose the format first. A Peak Pro places the chamber beside a dedicated glass top and adds app customization. The newer Peak keeps a similar rig format with preset controls. The New Proxy puts an app-enabled base into a modular surrounding-piece system. A Pivot is smaller and uses its own direct mouthpiece.
Compare the parts you will handle, clean and carry. There is little value in paying attention to an app feature you do not intend to use, or overlooking glass and charging requirements because two models share the same brand.
Common Peak Pro 3DXL questions
Does a 3DXL listing include the entire rig?
Not necessarily. Check whether the listing is a complete kit or an accessory chamber. The manufacturer's chamber listing explicitly excludes the Peak Pro base.
Can an older Peak Pro use a 3DXL?
Puffco lists all Peak Pro models as compatible and specifies updated firmware. That statement applies to Peak Pro, not every Peak-named device.
Does every wireless charger enable Ready Mode?
No. The documented Ready Mode setup requires the Peak Pro Power Dock and the app.
Get help with the exact part
Bring the base model, chamber name and a photo of the component when asking about replacements. Contact your nearest Cloud 9 for current availability; this guide does not show live inventory.
Find a Cloud 9 location · Explore concentrate guides.
Manufacturer references reviewed October 26, 2026. Format comparisons are editorial explanations; no hands-on testing or measured performance is claimed.
