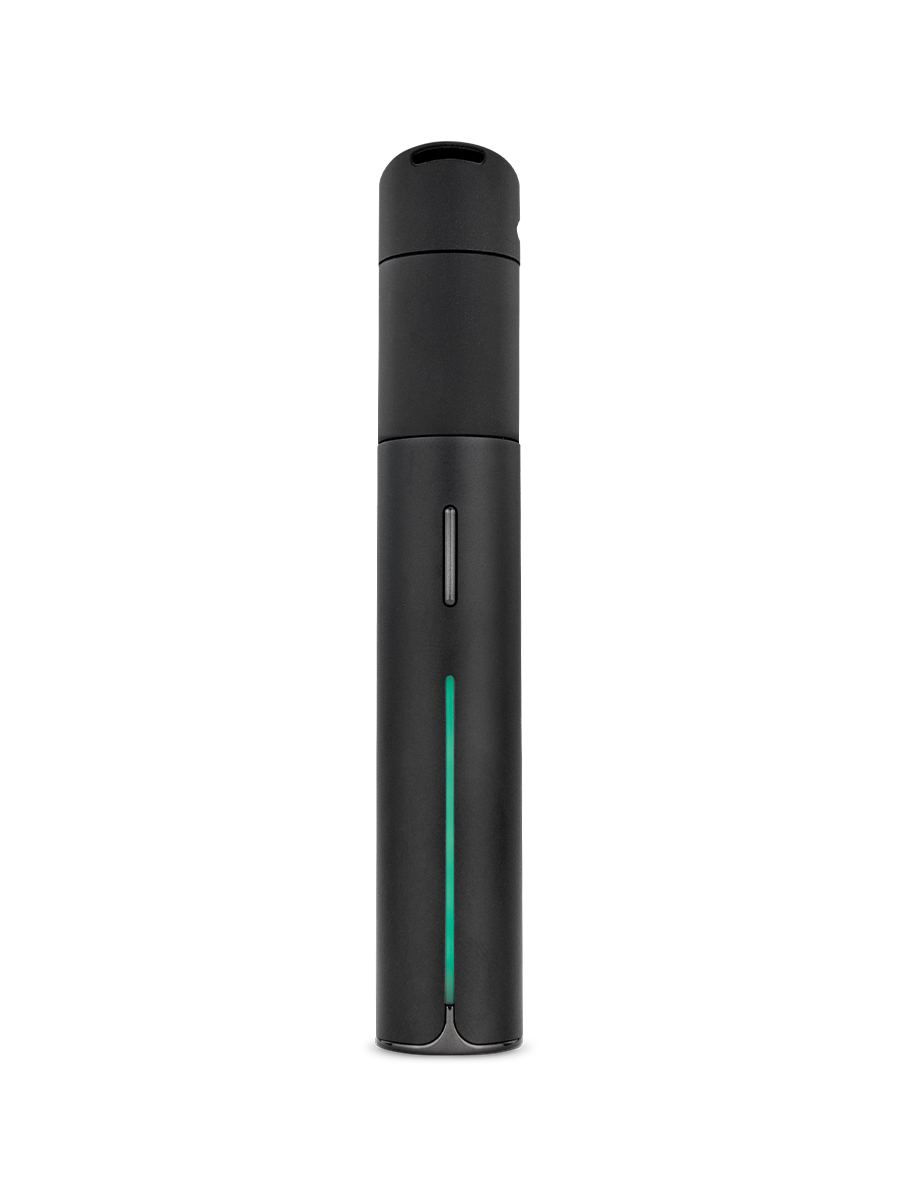

The Puffco Pivot is a rechargeable concentrate vaporizer built around a small, removable 3D Chamber. Its standard setup uses a dry mouthpiece, so there is no water-filled glass top to carry. A single button chooses the heat preset and starts a timed session; the light bar shows progress and the device vibrates when it is ready.
The useful question is whether that compact format fits your routine. A Pivot, a water-filtered Peak and a modular Proxy can all be described as concentrate devices, but their mouthpieces, maintenance and replacement parts are different. This guide explains the Pivot's actual controls, its limits and the accessories that belong to it.
Who is the Pivot for?
Consider the Pivot if you want a direct, handheld setup without assembling a glass rig. You still load concentrate into the chamber for each session: this is not a prefilled cartridge battery, disposable vape or dry-herb vaporizer. Its pocketable shape does not change the material it is designed to use.
Compare a Peak if you prefer an integrated water-filtered setup. Compare the New Proxy if changing between different surrounding pieces and using app controls matter more than a pen-shaped body. Those are choices about how you use and maintain the device, rather than a simple ranking of which model is “best.” Puffco's Pivot description.
Pivot features, explained
| Feature | Practical meaning |
|---|---|
| Quick-release 3D Chamber | A removable, model-specific heating assembly. Identify it as a Pivot chamber when replacing it. |
| Four heat presets | Choose a preset on the device; this is a different control system from an app-customized Peak Pro. |
| Light bar and vibration | Visible session progress and a ready signal, without a numerical screen. |
| USB-C charging | A charging connection on the bottom of the base. |
| Optional Glass Adapter | A separate accessory for connecting the Pivot base to suitable glass; the standard mouthpiece does not contain water filtration. |
“3D” identifies Puffco's chamber technology, not a universal connector. Do not assume that a chamber fits simply because another Puffco product also uses that name. Manufacturer chamber families.
What the button and light bar do
- Hold for three seconds to turn the device on or off.
- Press once to cycle through blue, green, red and white heat presets.
- Press twice to start a session. Wait for the ready vibration and flash.
- Press three times to check the battery indication.
The light bar filling during warm-up and emptying during the session are progress indicators. They do not show a laboratory measurement of the material or tell you that a larger load is needed. Separating “select a setting” from “start heating” makes the single-button interface easier to learn. Official operating steps.
Pivot temperature settings
| Light | Preset | How to compare it |
|---|---|---|
| Blue | 500°F | The lowest standard preset. |
| Green | 520°F | A step above blue. |
| Red | 540°F | A higher-temperature option. |
| White | 585°F | The highest standard preset. |
These are Pivot values. A blue light on a Peak or Proxy does not necessarily mean the same temperature. Compare the number and exact model, rather than transferring a color-based recommendation between devices. The manual also describes Boost as adding 15 seconds and 18°F after a session reaches temperature. Pivot manual, Heat Settings and Tips & Tricks.
Boost changes the session you already started. Repeatedly boosting should not become a substitute for checking the load, charge level or a dirty chamber. Puffco says not to initiate more than four consecutive heat-ups. Pivot Boost guidance.
Preparing the Pivot for a session
Begin with a charged base and a clean, dry chamber. Open the mouthpiece, place a small amount of the intended concentrate on the chamber's bottom surface and close the mouthpiece securely. Select the preset before starting heat. Keep the device upright and draw gently once it signals that it is ready.
The upright position and gentle draw matter because material can move out of the bowl. If you repeatedly find residue around the chamber connection, review loading and draw technique as well as cleaning. Adding more concentrate to compensate for an obstructed or dirty path can create more cleanup without solving the original problem. Pivot setup and troubleshooting reference.
Which Pivot accessories fit?
| Component | What to check |
|---|---|
| Replacement chamber | Look for Pivot 3D Chamber, not a Peak, Peak Pro or Proxy chamber. |
| Mouthpiece | Use a Pivot-specific replacement; inspect its seating and openings. |
| Glass Adapter | The official accessory includes its own quick-release chamber and 10 mm and 14 mm glass joints. Match the glass connection before assembling. |
| Loading tool or case | These serve handling or storage roles; they do not change chamber compatibility. |
The Glass Adapter changes the surrounding setup, not the identity of the powered base. Check the complete accessory listing rather than assuming that a similarly sized glass joint will create a supported fit. Official Pivot Glass Adapter · Pivot accessory overview.
Cleaning the chamber, mouthpiece and base
A gentle dry swab after a session removes residue while the bowl is warm. Deep cleaning is a separate task: allow the chamber to cool fully before disassembly or using isopropyl alcohol.
- Chamber: remove it from the mouthpiece, soak in 90% or stronger isopropyl alcohol for 20–30 minutes and let it air-dry completely. Do not rinse the chamber with water.
- Mouthpiece: the current support instructions allow the removed mouthpiece to be soaked, then water-rinsed and fully dried.
- Base: clean the connection with an alcohol-dampened cotton swab. Keep the electronics and charging port out of liquid.
The distinction between a removed mouthpiece and the electronic chamber is important: a water-rinse instruction for one component is not permission to rinse the whole assembly. Current component-specific cleaning instructions.
Understanding battery life
Puffco describes up to 15 heating cycles on the blue setting. It also says Boost counts as an additional cycle, so “15” should not be read as a guaranteed number of extended sessions. A higher preset or repeated extension changes the comparison. Use the battery indication to plan charging instead of judging the battery from a single long session. Manufacturer battery conditions.
Pivot troubleshooting
| Symptom | First check |
|---|---|
| Red-white flashing | A chamber connection issue. Cool the device, remove the chamber and clean the connection; dry fully before reseating. |
| No power | Check charging before assuming the base failed. Puffco's support procedure includes an initial 30-minute charging period even when the light does not immediately appear. |
| Weak output with residue near the connection | Check the load, mouthpiece path, chamber seating and cleanliness before increasing heat. |
Persistent errors need manufacturer support rather than force, scraping contacts or repeated heating. Red-white error reference · No-power procedure.
Common Pivot questions
Does the Pivot take nicotine vape juice or a cartridge?
No. It is a load-your-own concentrate device. Its chamber is not a nicotine e-liquid tank or a cartridge connection. Match both the material and replacement component to the manufacturer's instructions.
Do I need the Glass Adapter?
No. The standard mouthpiece is its own complete format. Consider the adapter only if connecting to a suitable glass setup is something you actually want to do.
Does a bigger vaporizer automatically make a Pivot unnecessary?
No. A larger water-filtered setup and a compact dry-mouthpiece device solve different practical problems. Compare the amount of glass, charging and cleaning you want in your routine.
Finding the right information at Cloud 9
For replacement-part help, bring the exact model name and a clear photo of the chamber or packaging. Contact your nearest Cloud 9 for current availability; this educational guide does not display live store inventory.
Find a Cloud 9 location · Explore concentrate guides.
Model details and linked manufacturer instructions reviewed October 26, 2026. Comparisons explain the formats; they do not claim hands-on testing or measured performance.
